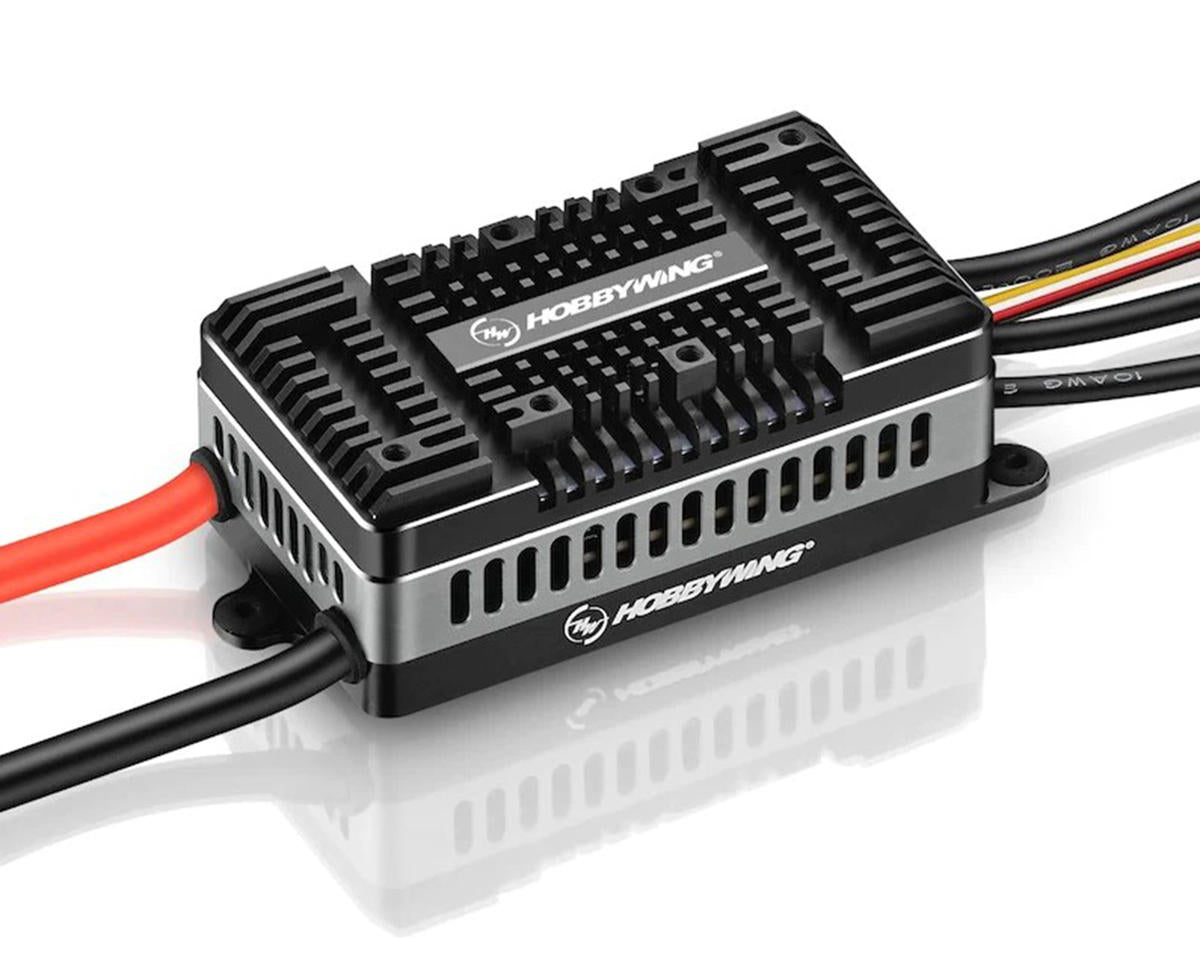

Platinum PRO V5 ESC

Specifications:

• Application: 700-800 Class Electric Helicopter
• Continuous/Instantaneous current: 260A / 400A
• Input voltage: 6-14S LiPo battery
• BEC: N/A
• The input/output wire: 1 x black and 1x red 8AWG silicone wires / 3 x black 10AWG silicone wires
• Independent parameter programming: Connect LCD program box or OTA module, or to power the cooling fan
• Dimensions (LxWxH): 89x50x34mm
• Weight: 297g
• Mounting holes: 3mm, 39x98mm

Includes:

• (1) Platinum 260A High Voltage V5 Brushless ESC (OPTO)
• User Manual
