Cajun Aircraft

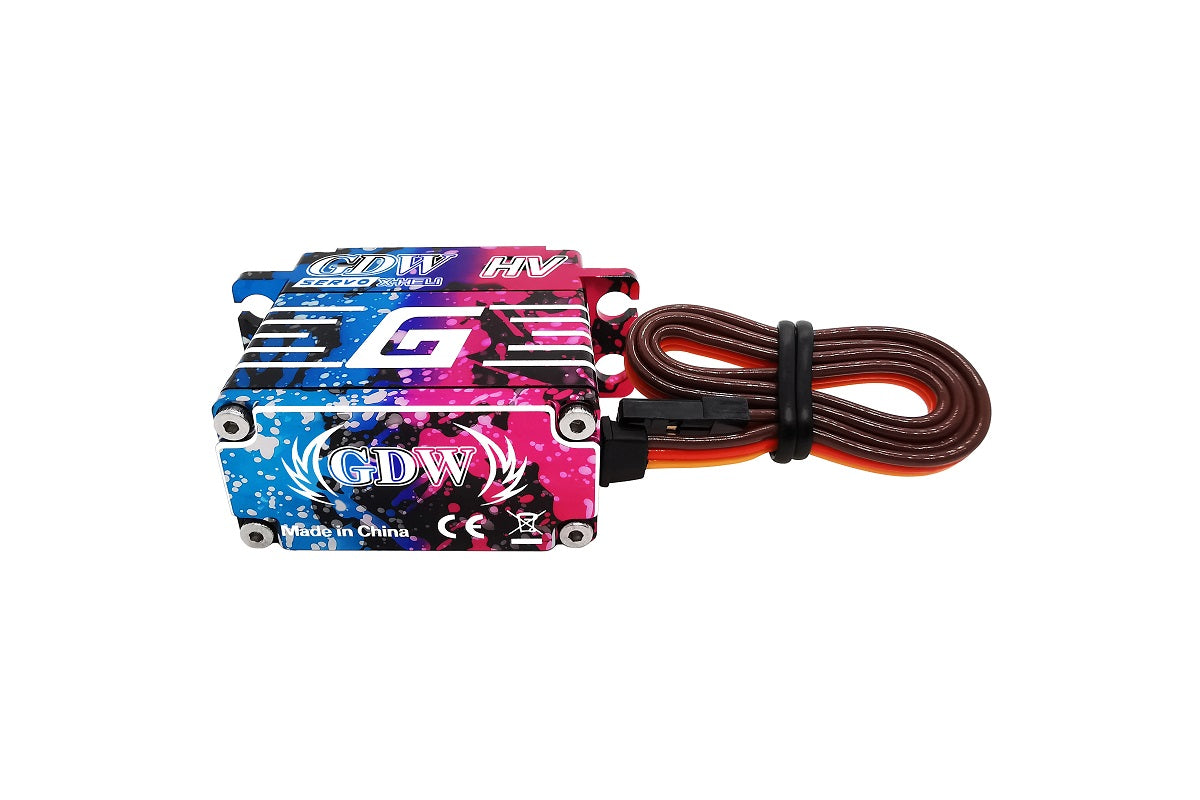

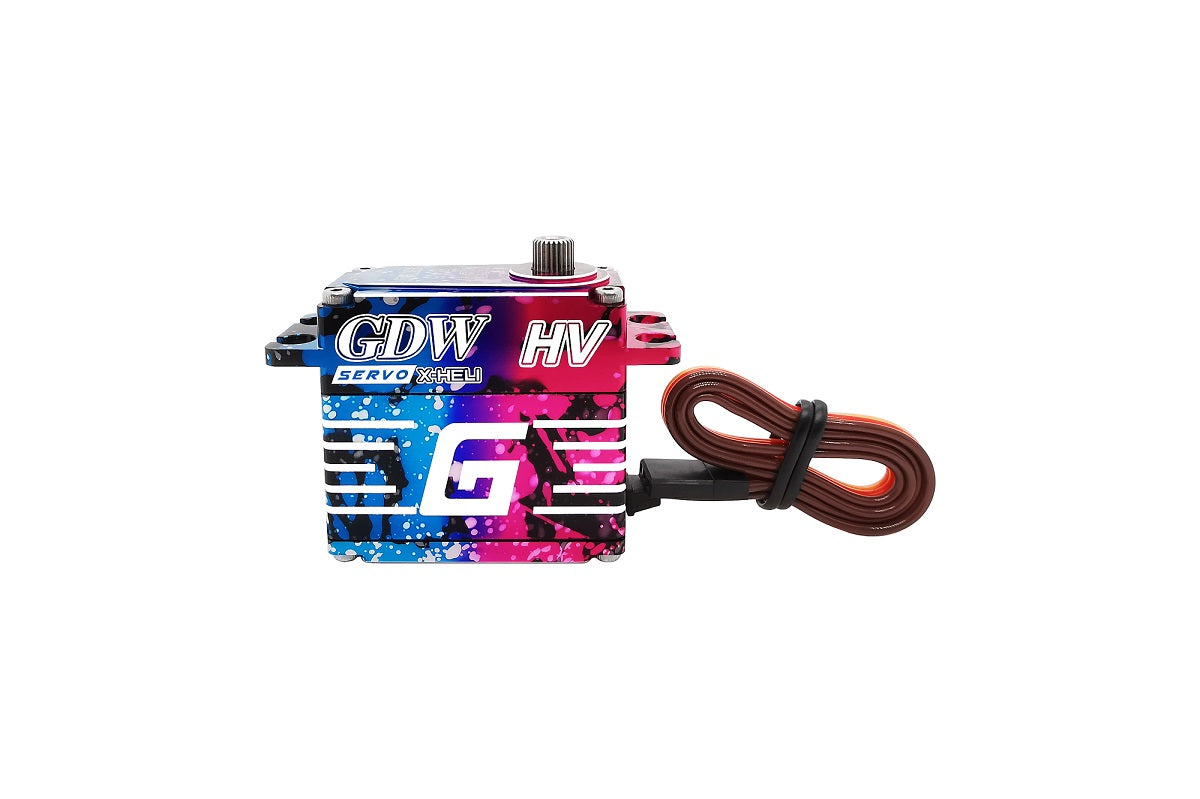

GDW G92 Cyclic Servo
GDW G92 Cyclic Servo
Regular price
$78.95
Regular price
Sale price
$78.95
Unit price
per
Couldn't load pickup availability
| G92 General Specs | |||||||||
| Operation Voltage Range | 4.8V up to 8.4 V | ||||||||
| Operation Temperature Range | -20C°up to +60C° | ||||||||
| Working frequency | 1520us/333Hz | ||||||||
| Bench tests reported values | |||||||||
| Test Voltage | 6.0V | 7.4V | 8.4V | ||||||
| Speed | 0.125sec/60° | 0.1sec/60° | 0.09sec/60° | ||||||
| Torque | 31Kg.cm | 38Kg.cm | 43Kg.cm | ||||||
| Fast continuous operating current 快速持续工作电流 |
800mA | 1000mA | 1200mA | ||||||
| 堵转电流 Stall current | 4600mA | 5500mA | 6000mA | ||||||
| 死区 Dead Band Width | 2µ | ||||||||
| 一般数据 General Data | |||||||||
| 电机型号 Motor Type | 无刷电机 Brushless motor 17*18mm | ||||||||
| 电位器类型 Potentiometer Type | 日本noble 220° Japan noble 220° | ||||||||
| 芯片类型 Chip type | 数字 Digital | ||||||||
| 重量 Weight | 77±1g | ||||||||
| 齿轮组材质 Gear Material | 钢 steel | ||||||||
| 输出齿数 Horn Gear Spline | 25T φ5.9mm | ||||||||
| 线长 Wire length | 330 ±5mm | ||||||||
| 线径 Wire Diameter | 0.3mm² | ||||||||
| 线芯数量 Number of wire cores | 60 | ||||||||
