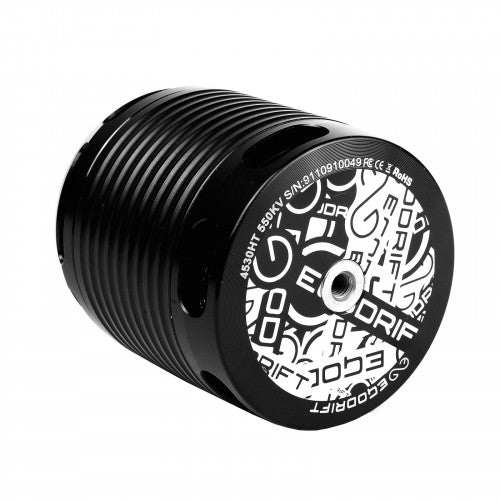

EGODRIFT TENGU 4530HT / 550KV (12-14S)

Hand-wound EGODRIFT Tengu 4530 HT (High Torque) Series 550kV brushless motor for 700-800mm class helicopters, such as the XLPower Spectre, SAB Goblin 700-770, Quest Impaction, Align T-Rex 700-800, Mikado Logo 700, or Gaui 700.

• Manufacturer: EGODRIFT
• Stator size: 4530
• Motor configuration: 12N10P
• Motor weight: 525g (17.25oz)
• Base Colour: Black
• Wire colour: Copper
• Motor wire type: High temperature copper wire
• Motor wire: 1.4mm
• Motor shaft: Hardened Steel
• Shaft diameter: 6.0 mm
• LiPo cells: 12S, 14S
• Motor kV: 550 kV
• Stator diameter: 45 mm
• Stator height: 30 mm
• Stator lamination: 0.15 mm (+)

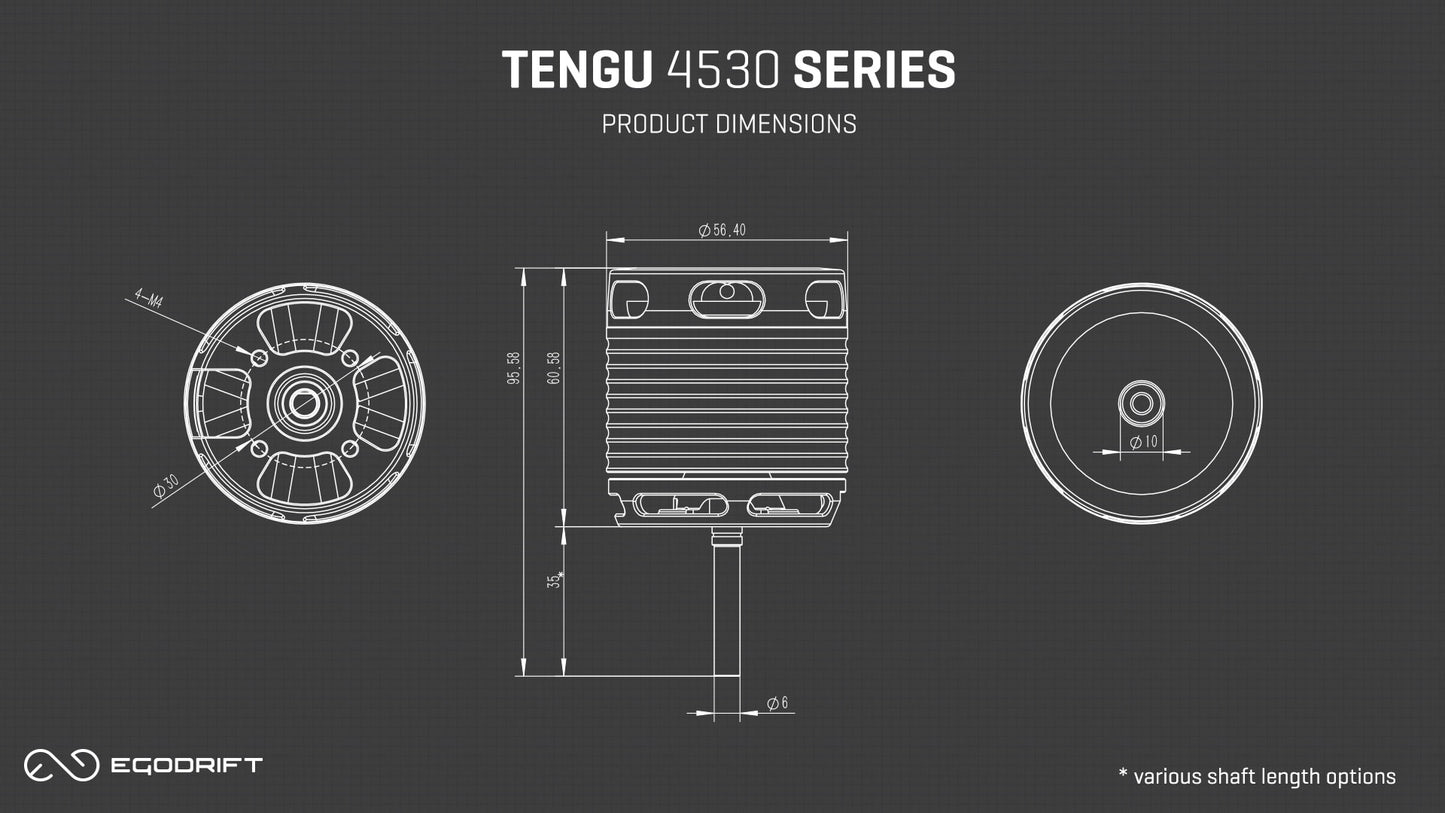

• Body Length: 60.58mm (2.39 inch)
• Diameter: 56.40 mm (2.22 inch)
• Screw hole diameter: 4,0 mm
• Motor hole pattern: 30mm
• Idle current: 4.8A
• Maximum Current: 145A (Peak: 265A / 2 seconds)
• Maximum Power: 6960W (Peak: 13300W / 2 seconds)
• Internal resistance: 9.9 mOhm
• Connection: Wire / Gold plated plugs
• Designer: Yutao Zou
