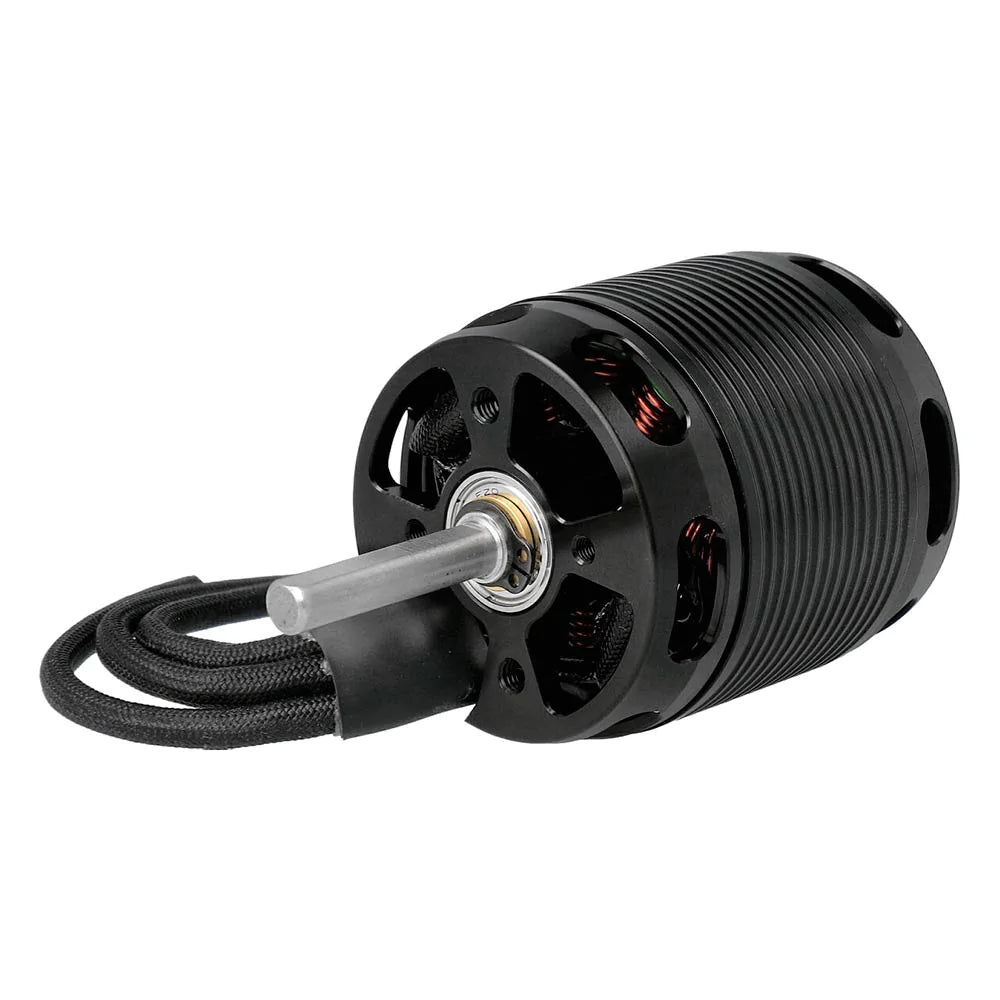

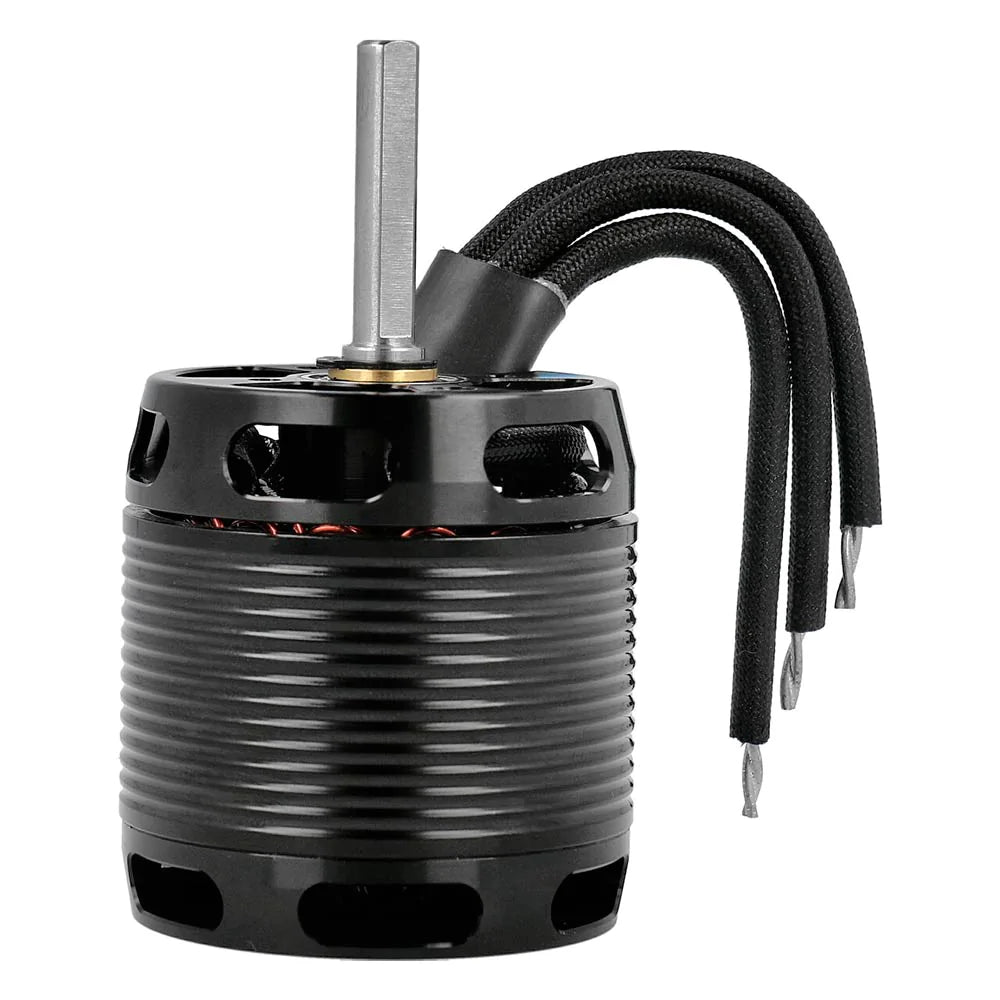

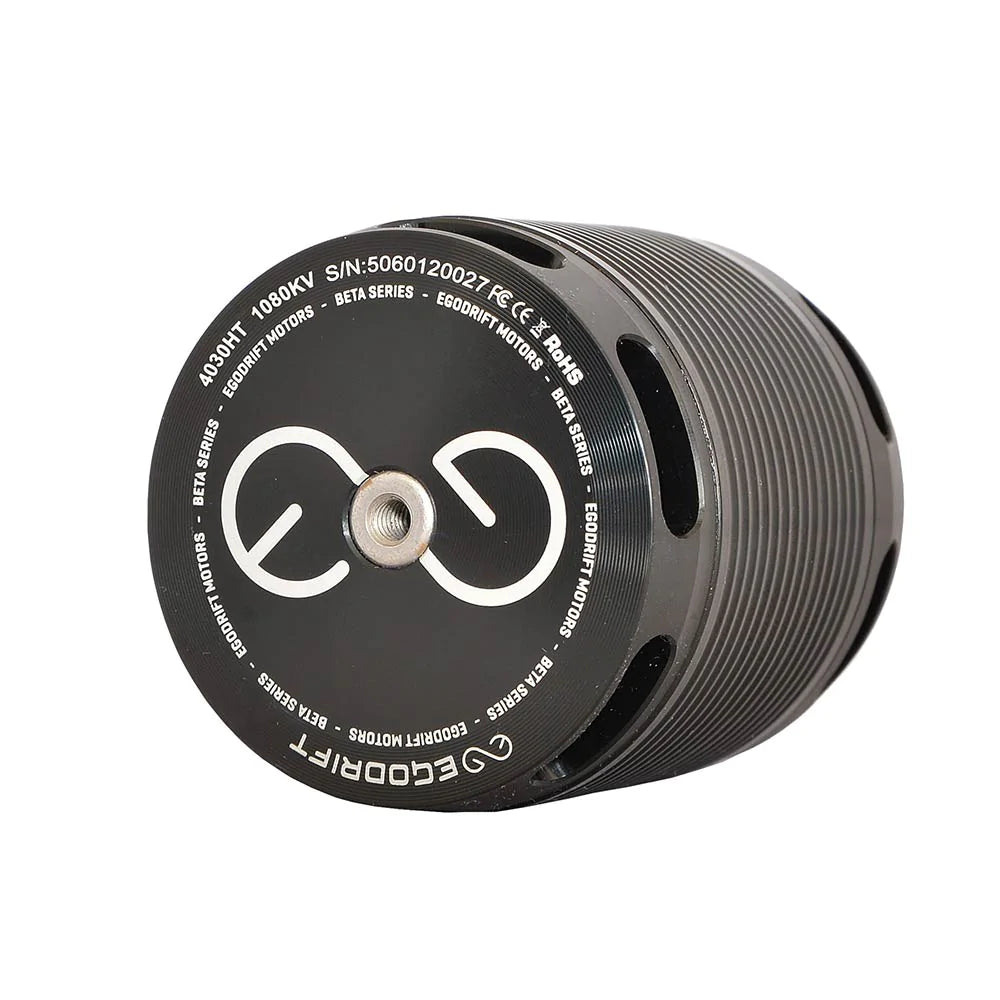

Egodrift BETA Tengu 4030HT / 1080kV Motor (6x38)

EGODRIFT BETA Series 4030HT motor with a kV rating of 1080kV for 550-600 size rc helicopters on 6-7S setups.

Our EGODRIFT BETA Series is your chance to fly our latest brushless motor creations first and before they're officially released.

The 4030 HT motors offer yet faster reaction speed, increased power and efficiency and come with a 2.5mm higher base improved cooling.

Please note that the shafts available for the 40xx HS models will for this reason NOT fit the 40xx HT models. Shaft kits for the HT models are of course available as well .

SPECIFICATIONS

• Manufacturer: EGODRIFT
• Stator size: 4030
• Motor configuration: 12N10P
• Motor weight: TBA
• Base Colour: Black
• Wire colour: Copper
• Motor wire type: High temperature copper wire
• Motor wire: 1.0mm
• Motor shaft: Hardened Steel
• LiPo cells: 6S, 7S
• Motor kV: 1080 kV
• Stator diameter: 40 mm
• Stator height: 30 mm
• Body Length: 57.5mm (2.26 inch)
• Diameter: 49.6mm (1.95 inch)
• Motor hole pattern: 25mm, 30mm
• Idle current: TBA
• Maximum Current: TBA
• Maximum Power: TBA
• Internal resistance: TBA

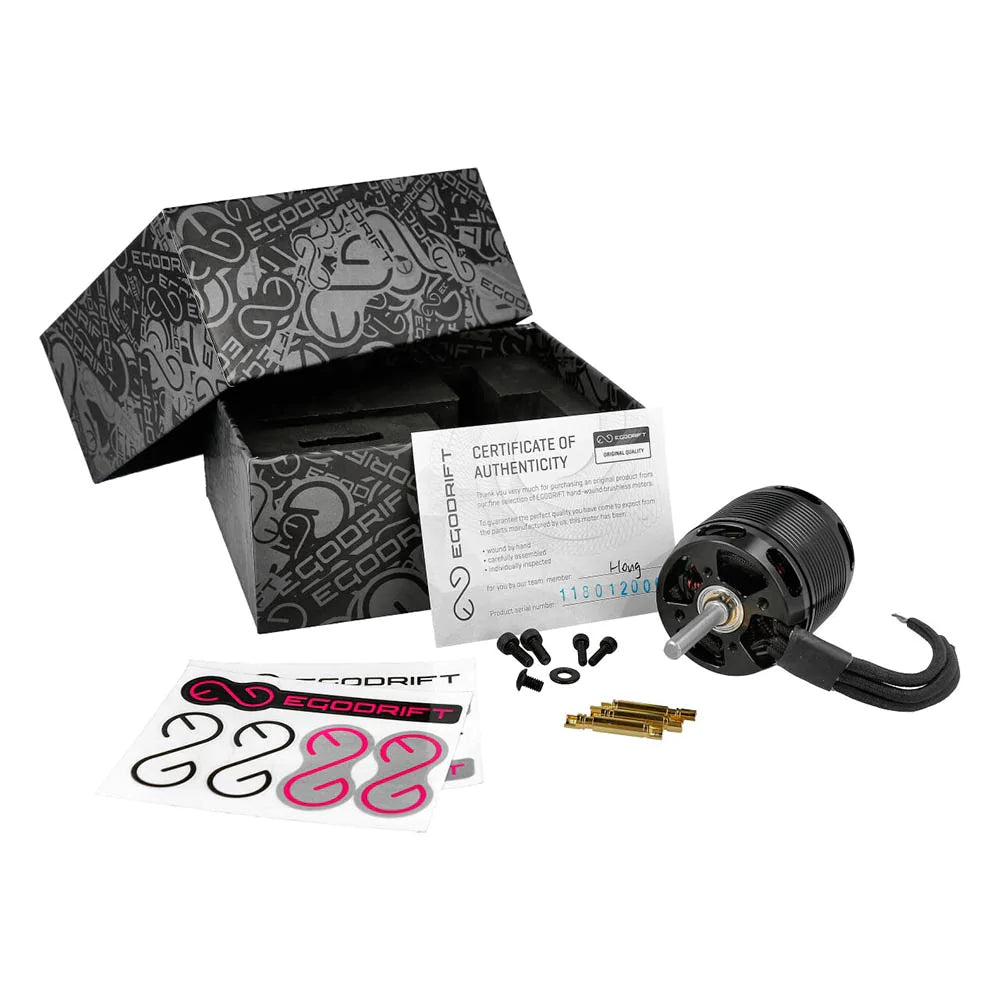

What's in the box

• 1 x BETA Tengu 4030HT / 1080kV Motor
• 3 x Gold Plated Amass Connector, Male
• 3 x Gold Plated Amass Connector, Female
• 4 x Mounting Screws
• 1 x Bell securing screw
